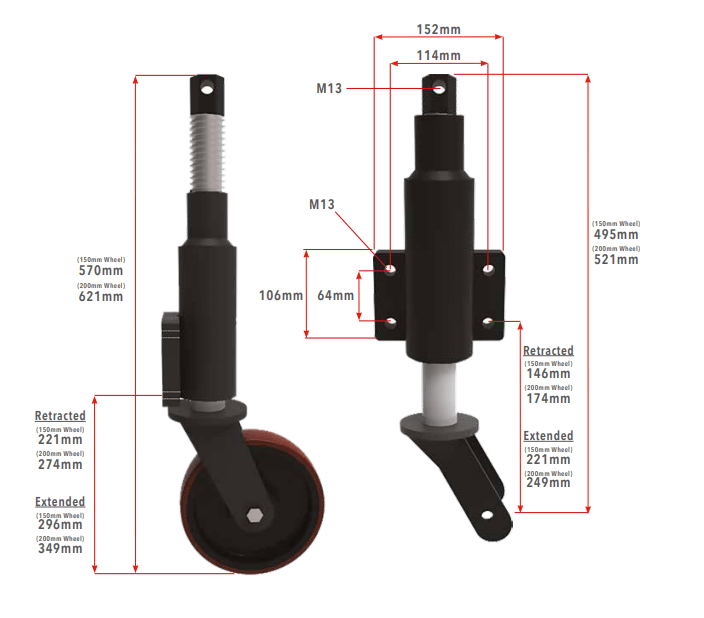

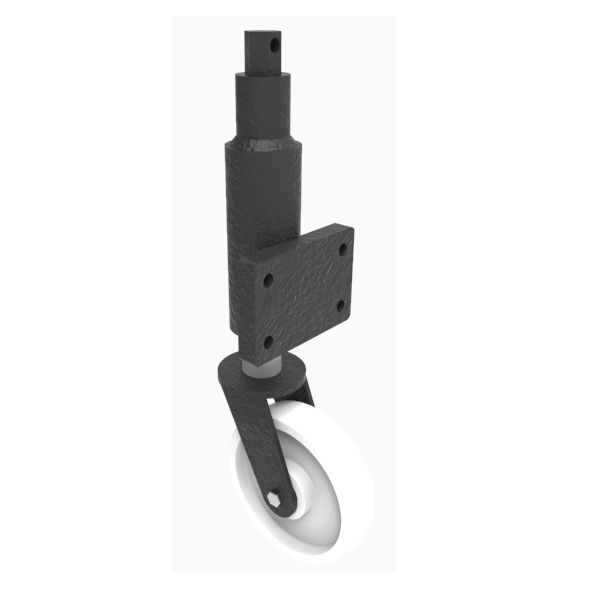

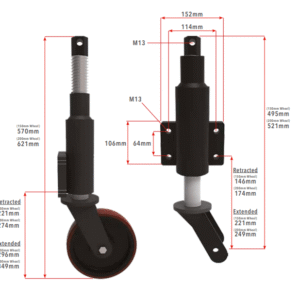

Fabricated 75mm lift swivel jacking bracket with fixing plate fitted with a white nylon wheel with roller bearings. Wheel diameter 200mm, tread width 50mm, overall height when open 621mm plate size 152mm x 106mm, hole centres 114mm x 64mm Load capacity 1000kg.
| Diameter (mm) | 200 |
|---|---|
| Height (mm) | 621 |
| Castor Type | Swivel |
| Swivel Radius (mm) | 160 |
| Fixing Option | Plate |
| Bearing type | Roller |
| To Suit Fixing Bolt (mm) | 12 |
| Colour / Shore Hardness | White Nylon |
| Temperature Resistance | '-30 °C TO +80 °C |
