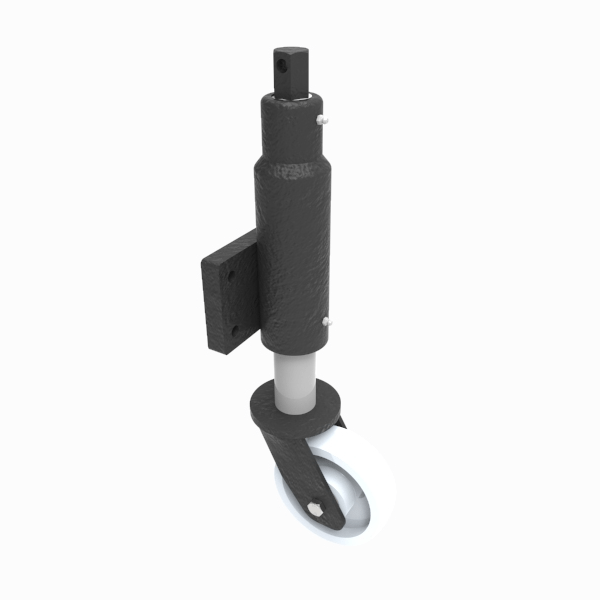

Fabricated 75mm lift swivel jacking bracket with fixing plate fitted with a white nylon ball bearing wheel. Wheel diameter 150mm, tread width 45mm, overall height 570mm, plate size 152mm x 106mm, hole centres 114mm x 64mm Load capacity 800kg
Use our bespoke quote tool and a member of our team will provide you with a quote.
Fabricated 75mm lift swivel jacking bracket with fixing plate fitted with a white nylon ball bearing wheel. Wheel diameter 150mm, tread width 45mm, overall height 570mm, plate size 152mm x 106mm, hole centres 114mm x 64mm Load capacity 800kg
| Diameter (mm) | 150 |
|---|---|
| Height (mm) | 570 |
| Castor Type | Swivel |
| Swivel Radius (mm) | 129 |
| Fixing Option | Plate |
| Bearing type | Ball |
| To Suit Fixing Bolt (mm) | 12 |
| Wheel Material | Nylon |
| Colour / Shore Hardness | White Nylon |
| Temperature Resistance | '-30 °C TO +80 °C |
