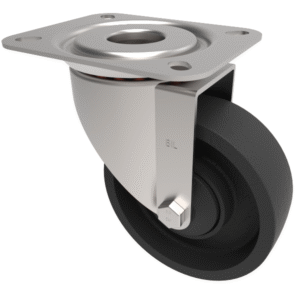

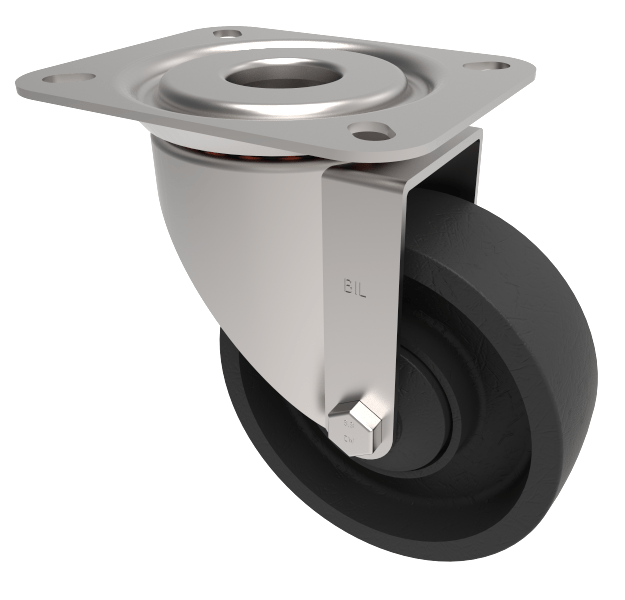

Pressed steel swivel castor with a top plate fixing fitted with a 280C grey technopolymer reinforced with glass fiber wheel with a single ball bearing and retaining caps. Wheel diameter 100mm, tread width 32mm, overall height 128mm, top plate 105mm x 80mm, hole centres 80mm x 60mm or 75mm x 45mm. Load capacity 200kg.
| Diameter (mm) | 100 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Swivel |
| Plate Size (mm) | 100 x 85 |
| Hole Centres (mm) | 80/75 x 60/45 |
| To Suit Fixing Bolt (mm) | 8 |
| Height (mm) | 128 |
| Bearing type | Ball |
| Swivel Radius (mm) | 92 |
| Wheel Material | Technopolymer |
