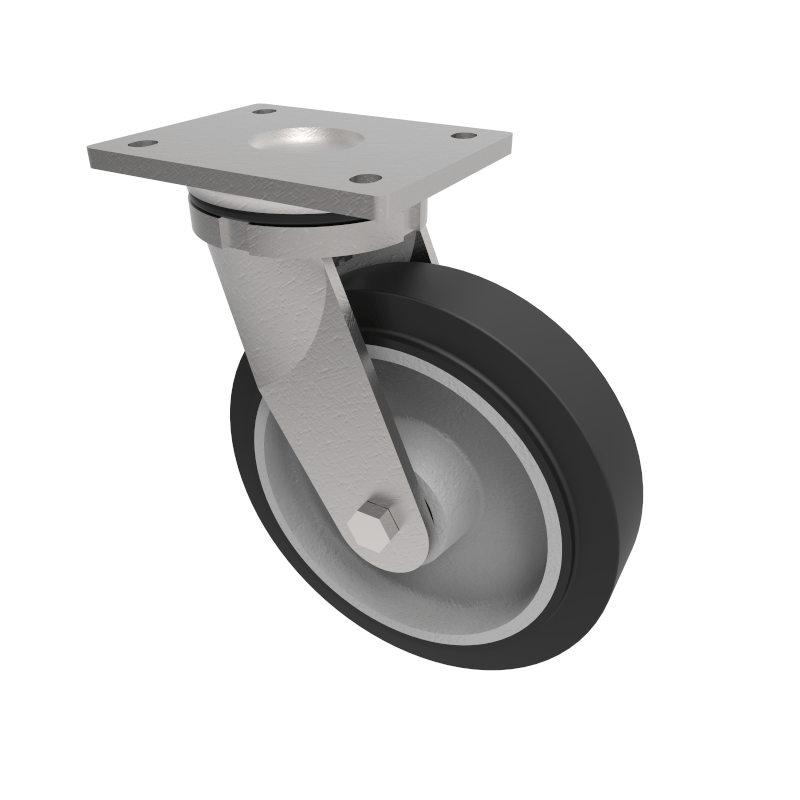

Fabricated yellow ROHS zinc plated swivel castor with plate fixing fitted with a black elastic rubber tyred on a cast iron centred wheel centred wheel with ball bearings. Wheel diameter 200mm, tread width 50mm, overall height 250mm, plate size 138mm x 110mm, hole centrtes 105mm x 80mm/75mm. Load capacity 500kg, – At 6 kph speed, the load of each wheel is advised to be 80% of the load at 4kph – At 10 kph speed, the load of each wheel is advised to be 55% of the load at 4 kph. – At 16 kph speed, the load of each wheel is advised to be 45% of the load at 4kph. – At 20 kph speed, the load of each wheel is advised to be 35% of the load at 4 kph. – No data for elastic rubber wheel over 20 kph.
** FOR INTERNAL AND EXTERNAL TOWING USE **
