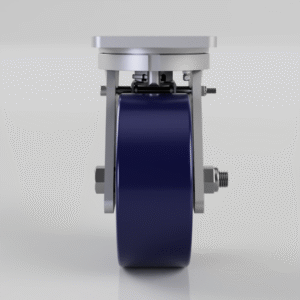

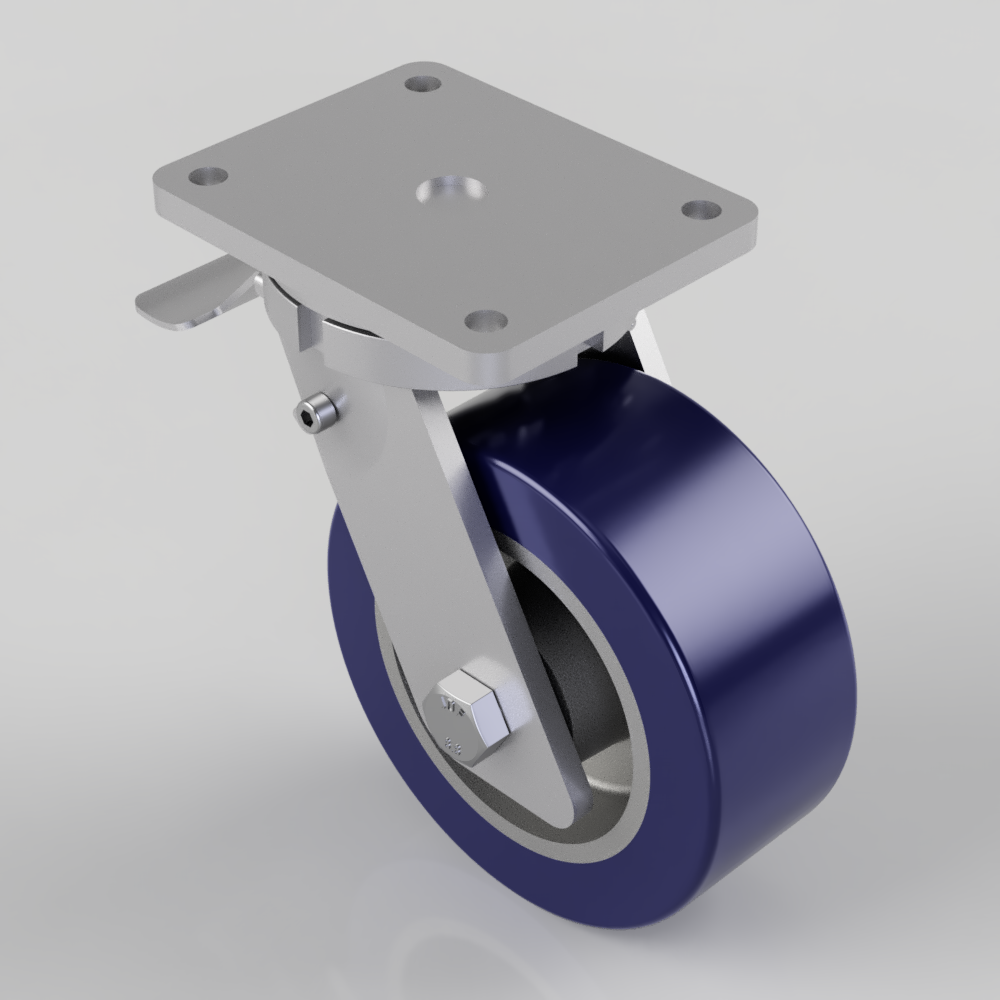

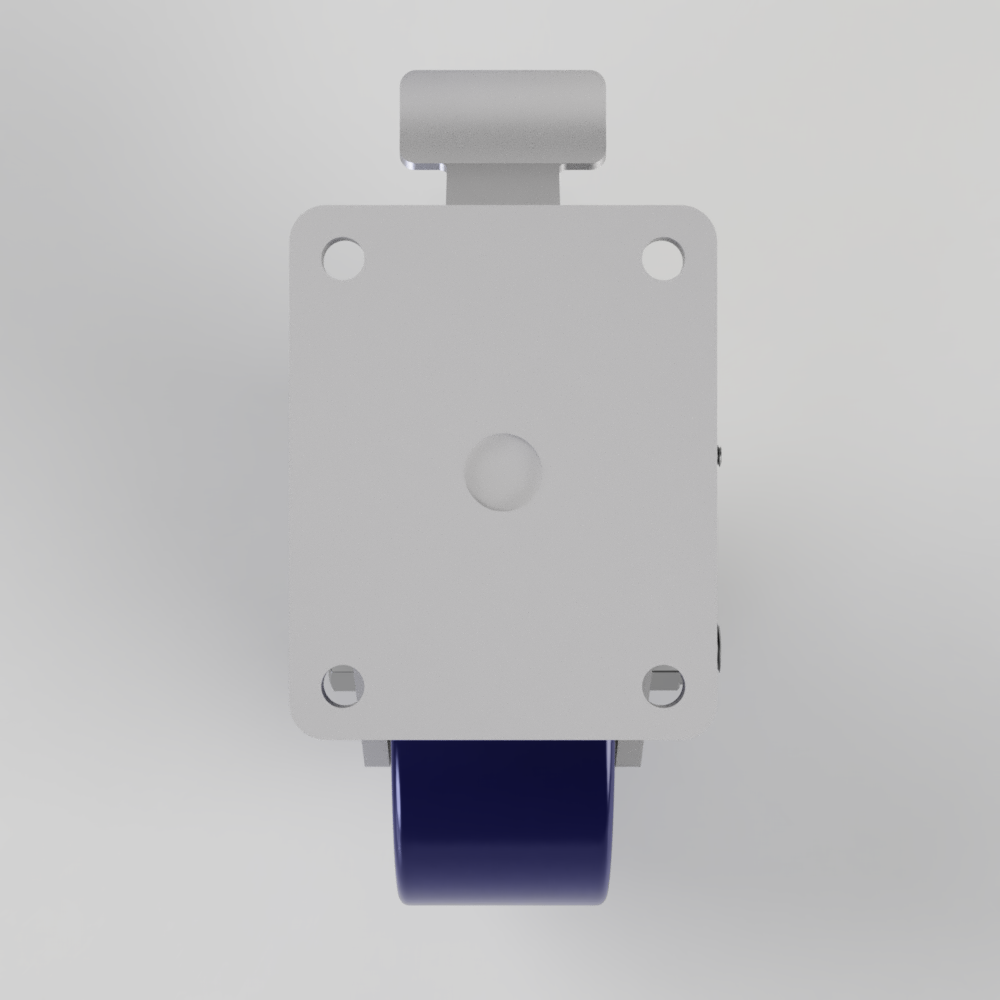

Fabricated swivel braked castor with a flat plate fixing fitted with a 75 shore A ‘extra soft’ blue polyurehtane on cast iron centred wheel with ball bearings. Wheel diamater 200mm, tread width 80mm, overall height 264mm, plate size 175mm x 140mm, hole centres 140mm x 105mm. Load capacity 1200kg at at 4kph, 480kg at 10kph and 420kg at 16kph
** FOR INTERNAL AND EXTERNALÂ TOWING USE**
| Diameter (mm) | 200 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Swivel with Total Lock Brake |
| Bearing type | Ball |
| Height (mm) | 264 |
| Plate Size (mm) | 170 X 140 |
| Hole Centres (mm) | 140 X 105 |
| To Suit Fixing Bolt (mm) | 14 |
| Wheel Material | Polyurethane on Cast Iron |
| Colour / Shore Hardness | Blue Ergonomic Polyurethane on Cast Iron Rim / 75 Shore A |
