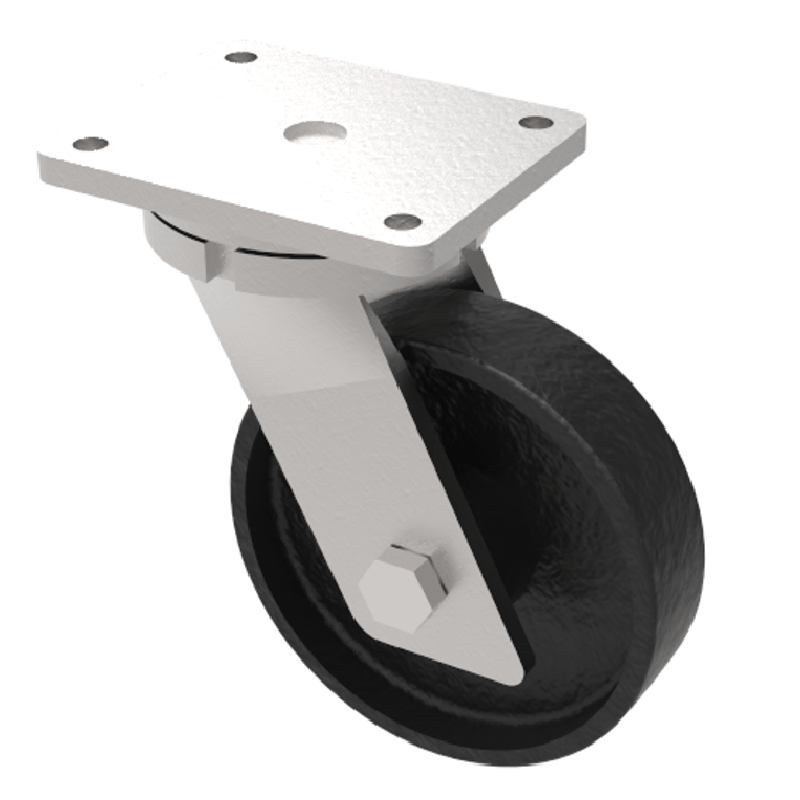

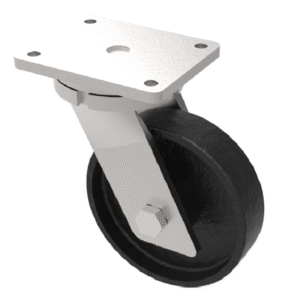

Fabricated swivel castor fitted with a dustile steel wheel with taper roller bearings. Wheel diameter 200mm, tread 100mm, overall height 280mm, top plate 255mm x 200mm, hole centres 210mm x 160mm. Load capacity 3600kg.
Use our bespoke quote tool and a member of our team will provide you with a quote.
Fabricated swivel castor fitted with a dustile steel wheel with taper roller bearings. Wheel diameter 200mm, tread 100mm, overall height 280mm, top plate 255mm x 200mm, hole centres 210mm x 160mm. Load capacity 3600kg.
| Diameter (mm) | 200 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Swivel |
| Bearing type | Taper |
| Height (mm) | 280 |
| Plate Size (mm) | 255 X 200 |
| Hole Centres (mm) | 210 X 160 |
| To Suit Fixing Bolt (mm) | 16 |
| Wheel Material | Steel |
| Colour / Shore Hardness | Black Painted Ductile Steel |
