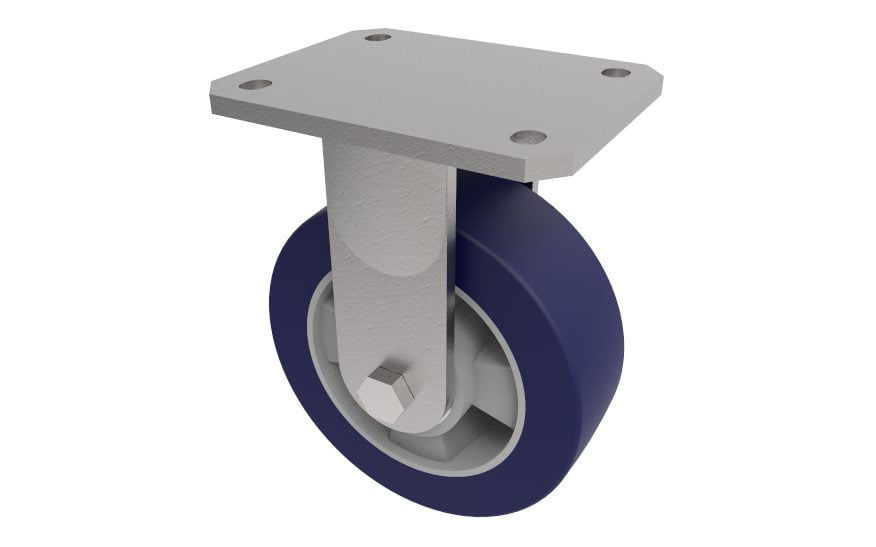

Fabricated zinc plated fixed castor with a top plate fixing fitted with a blue 75 shore A polyurethane tyred on aluminium centred wheel with a ball bearing. Wheel diameter 160mm, tread width 50mm, overall height 205mm, plate size 138mm x 110mm, hole centres 105mm x 75/80mm. Load capacity 550kg at 4kph, 220kg at 16kph.
** FOR INTERNAL AND EXTERNALÂ TOWING USE**
| Diameter (mm) | 160 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Fixed |
| Bearing type | Ball |
| Height (mm) | 205 |
| Plate Size (mm) | 138 x 110 |
| Hole Centres (mm) | 105 x 80 |
| To Suit Fixing Bolt (mm) | 10 |
| Wheel Material | Polyurethane on Aluminium |
| Colour / Shore Hardness | Blue Polyurethane on Aluminium Rim / 75 Shore A |
