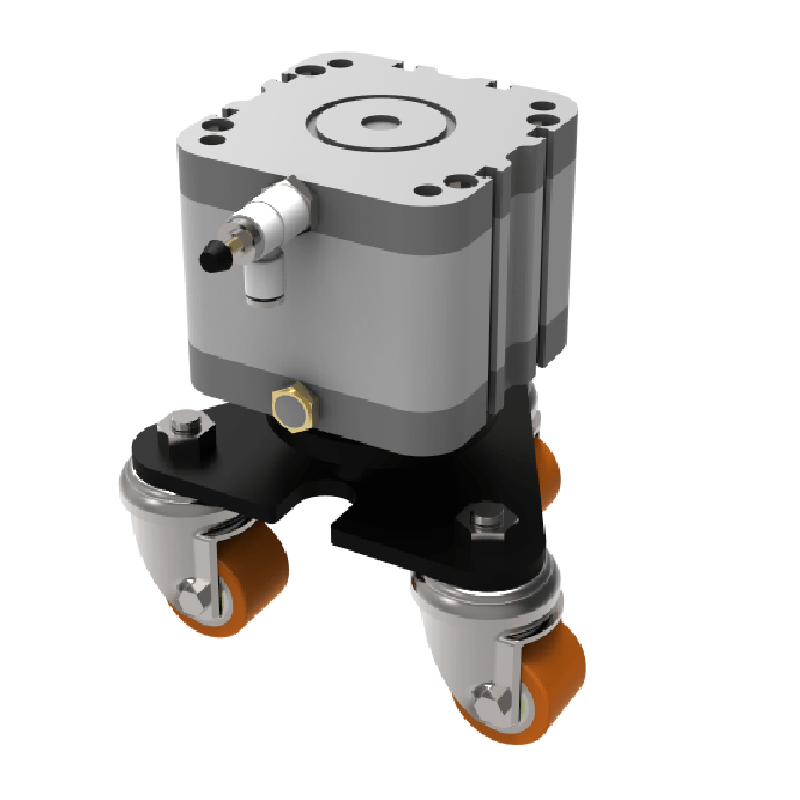

Ezeelift Pneumatic Lifting System including 4 x 35mm Triple Swivel cylinder skates, Flow controls, Manifold, Operating Switch, Co2 Regulator and 25mtrs of tubing. Height retracted 174mm, Height extended 199mm, Load capacity 750kg.
Use our bespoke quote tool and a member of our team will provide you with a quote.
Ezeelift Pneumatic Lifting System including 4 x 35mm Triple Swivel cylinder skates, Flow controls, Manifold, Operating Switch, Co2 Regulator and 25mtrs of tubing. Height retracted 174mm, Height extended 199mm, Load capacity 750kg.
| Wheel Material | Polyurethane on Steel |
|---|---|
| Fixing Option | Direct to Cylinder fixing |
| Castor Type | Swivel |
| Diameter (mm) | 35 |
| Load Capacity (kg) | 750 |
| Bearing type | Ball |
| To Suit Fixing Bolt (mm) | 10 |
| Height (mm) | 174, 199 |
| Tread (mm) | 28 |
| Plate Size (mm) | 95.5 x 95.5 |
