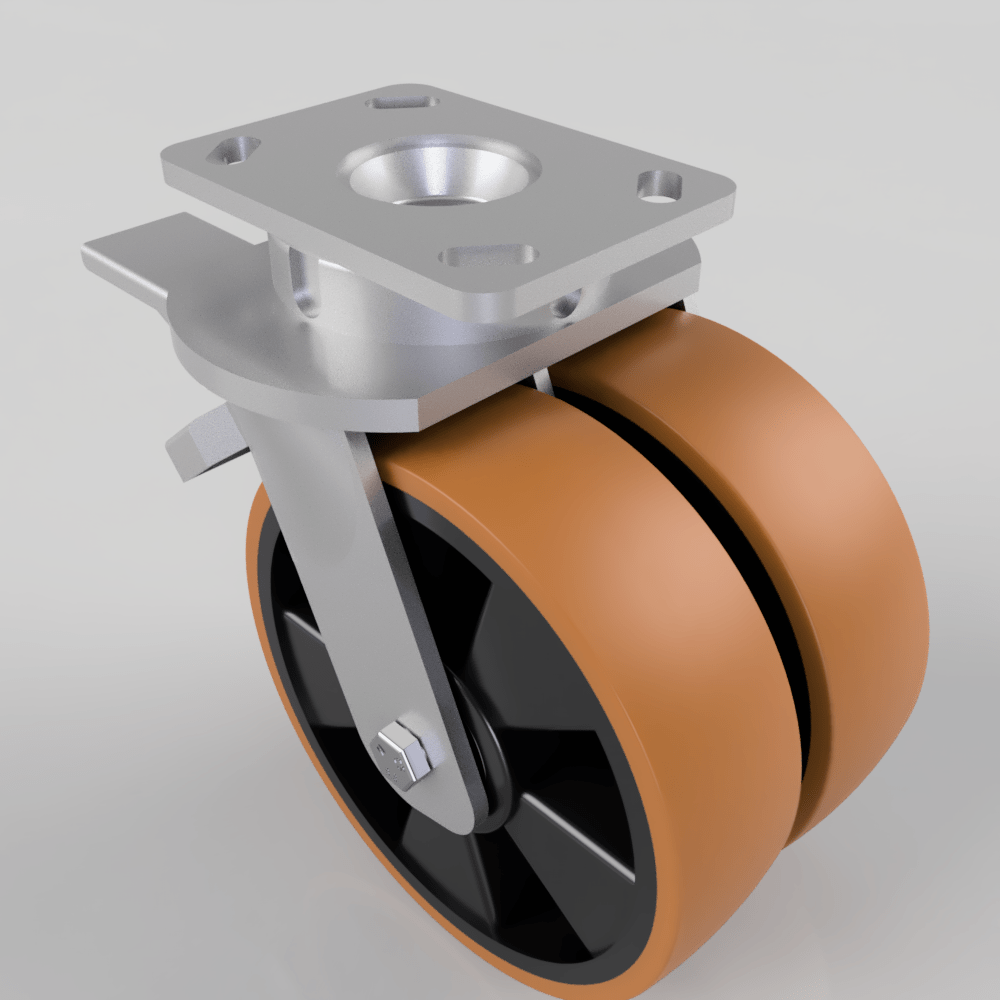

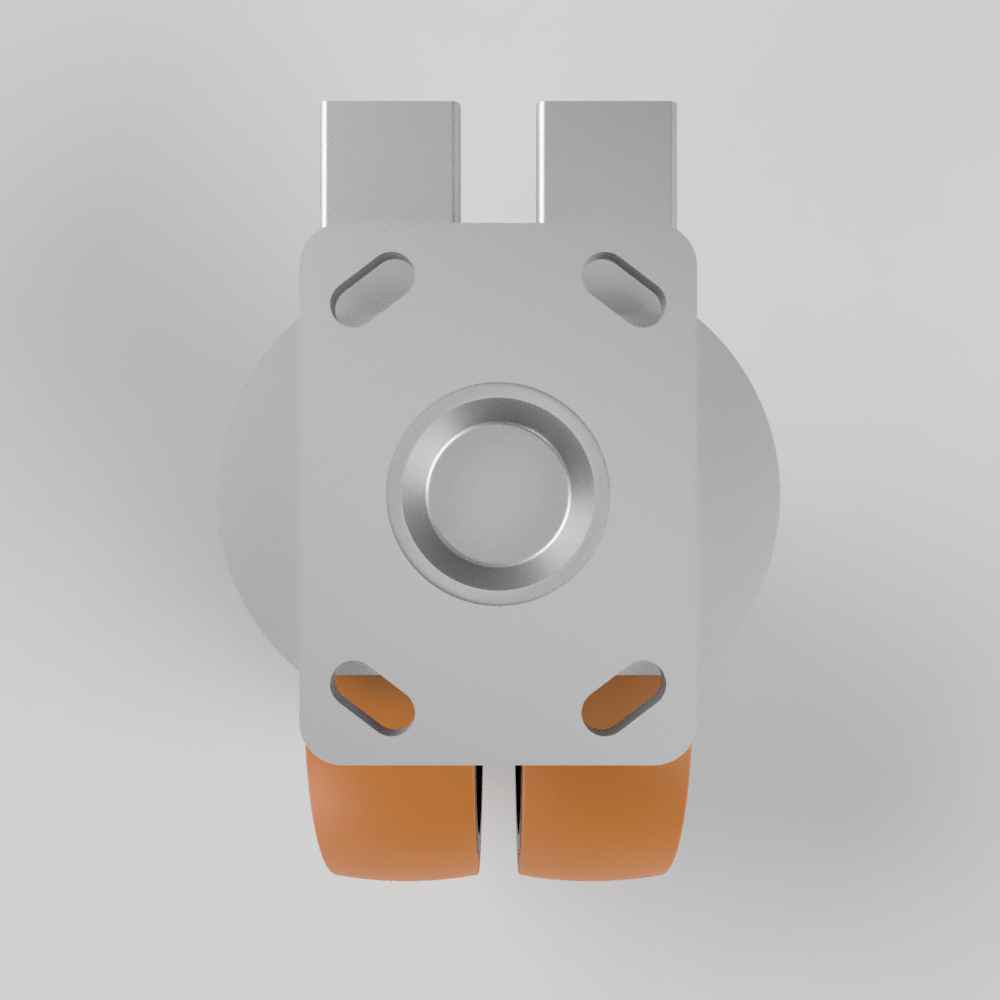

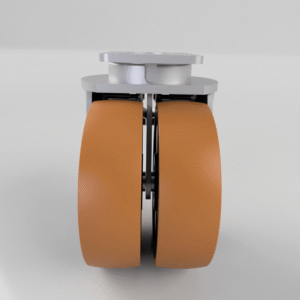

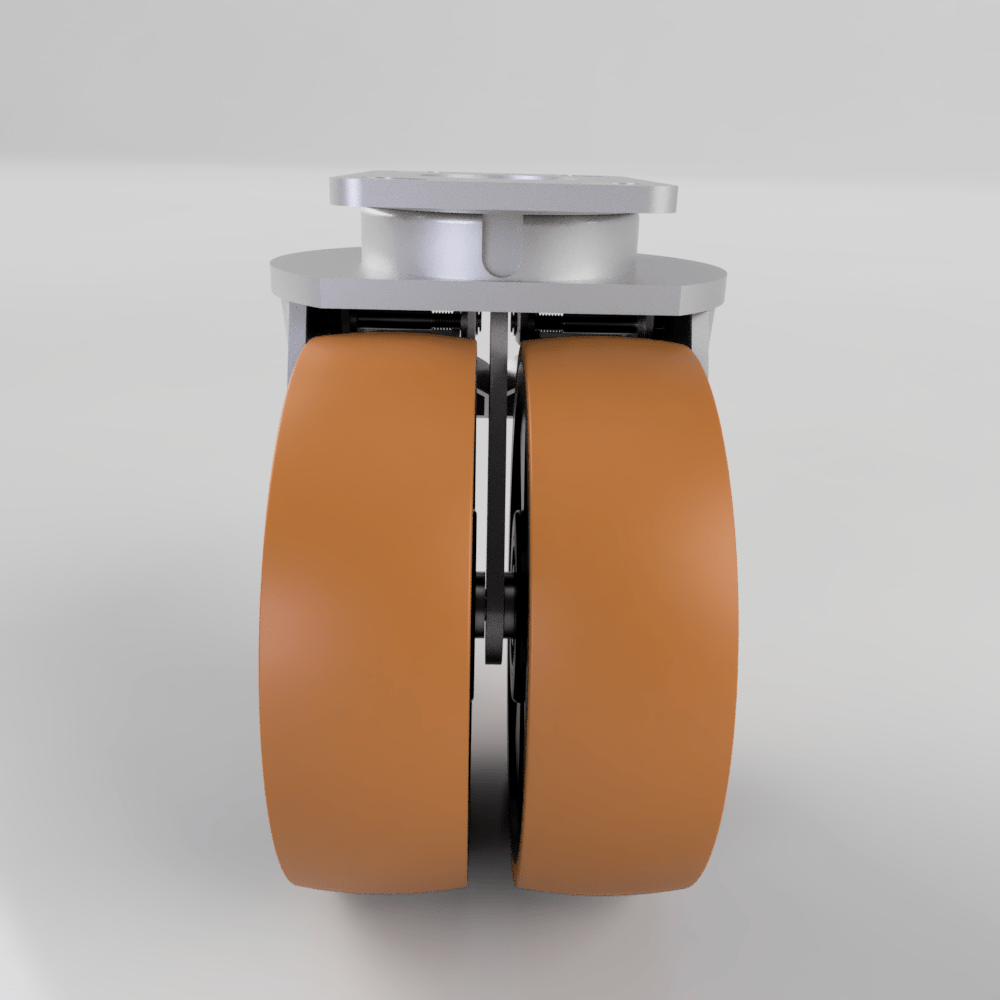

Twin-wheeled fabricated swivel castor with a top plate fixing and 4 way directional lock fitted with 2 x brown polyurethane tyred black nylon centred centred ball bearing wheels with double wheel brake. Wheel diameter 200mm, tread width 57mm, overall height 200mm, top plate 150mm x 110mm, hole centers 105mm x 80mm or 121mm x 59mm. Load capacity 1500kg.
| Diameter (mm) | 200 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Swivel with Wheel Brake |
| Bearing type | Ball |
| Plate Size (mm) | 150 x 110 |
| Hole Centres (mm) | 105/121 x 80/59 |
| Height (mm) | 250 |
| Swivel Radius (mm) | 170 |
| To Suit Fixing Bolt (mm) | 12 |
| Wheel Material | Polyurethane on Nylon |
