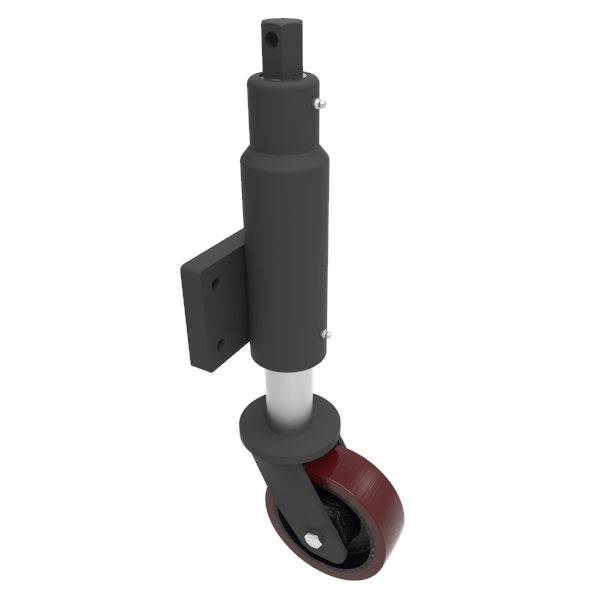

Fabricated 75mm lift swivel jacking bracket with fixing plate fitted with a brown polyurethane tyred cast iron centred wheel with ball bearings. Wheel diameter 150mm, tread width 50mm, overall height when open 632mm and 556mm when closed, plate size 152mm x 106mm, hole centres 114mm x 64mm Load capacity 750kg.
| Diameter (mm) | 150 |
|---|---|
| Height (mm) | 570 |
| Castor Type | Swivel |
| Swivel Radius (mm) | 129 |
| Fixing Option | Plate |
| Bearing type | Ball |
| To Suit Fixing Bolt (mm) | 12 |
| Wheel Material | Polyurethane on Cast Iron |
| Colour / Shore Hardness | Brown Polyurethane on Cast Iron Rim / 94 Shore A |
| Temperature Resistance | '-20 °C TO +80 °C |
