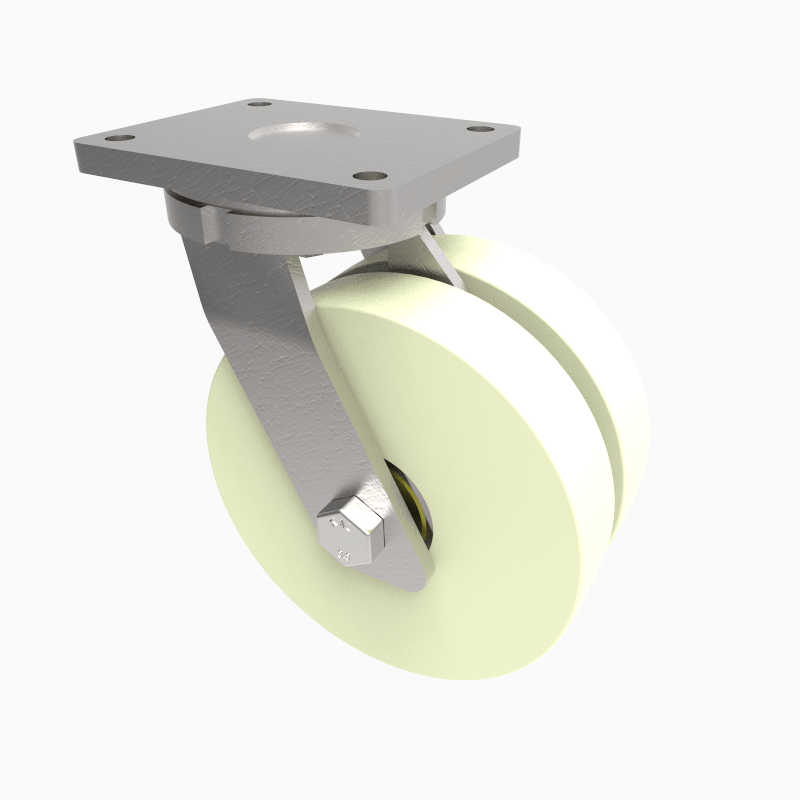

Fabricated twin wheeled swivel castor fitted with heavy duty white nylon wheels with ball bearings. Wheel diameter 250mm, Tread width 55mm + 55mm, Overall height 314mm, Top plate 200mm x 160mm, Hole centres 160mm x 120mm,Load capacity 5000kg
Use our bespoke quote tool and a member of our team will provide you with a quote.
Fabricated twin wheeled swivel castor fitted with heavy duty white nylon wheels with ball bearings. Wheel diameter 250mm, Tread width 55mm + 55mm, Overall height 314mm, Top plate 200mm x 160mm, Hole centres 160mm x 120mm,Load capacity 5000kg
| Diameter (mm) | 250 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Swivel |
| Bearing type | Ball |
| Plate Size (mm) | 200 X 160 |
| Hole Centres (mm) | 160 X 120 |
| Height (mm) | 314 |
| Swivel Radius (mm) | 218 |
| To Suit Fixing Bolt (mm) | 16 |
| Wheel Material | Nylon |
