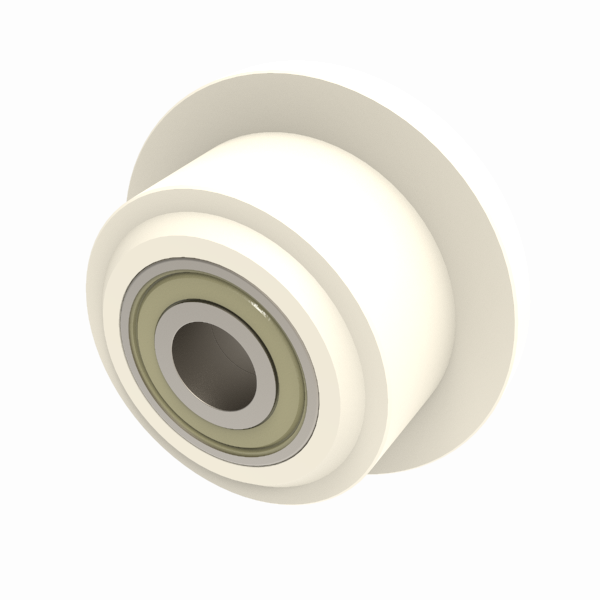

Flanged nylon wheel with ball bearings. Wheel diameter 75mm,outer flange 100mm, tread width 30mm, total tread width 40mm,bore size 20mm, hub length 47mm. Load capacity 380kg.
Use our bespoke quote tool and a member of our team will provide you with a quote.
Flanged nylon wheel with ball bearings. Wheel diameter 75mm,outer flange 100mm, tread width 30mm, total tread width 40mm,bore size 20mm, hub length 47mm. Load capacity 380kg.
| Wheel Material | Cast Nylon |
|---|---|
| Colour / Shore Hardness | White Cast Nylon / 60 – 90 Shore D |
| Diameter (mm) | 75 |
| Flanged Diameter (mm) | 100 |
| Flange Width (mm) | 30 |
| Load Capacity (kg) | 380 |
| Bearing type | Ball |
| Bore Size (mm) | 20 |
| Total Tread (mm) | 47 |
| Tread (mm) | 30 |
