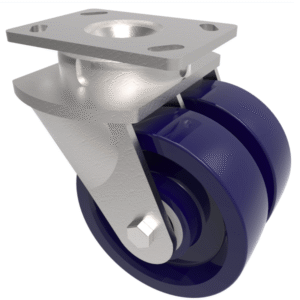

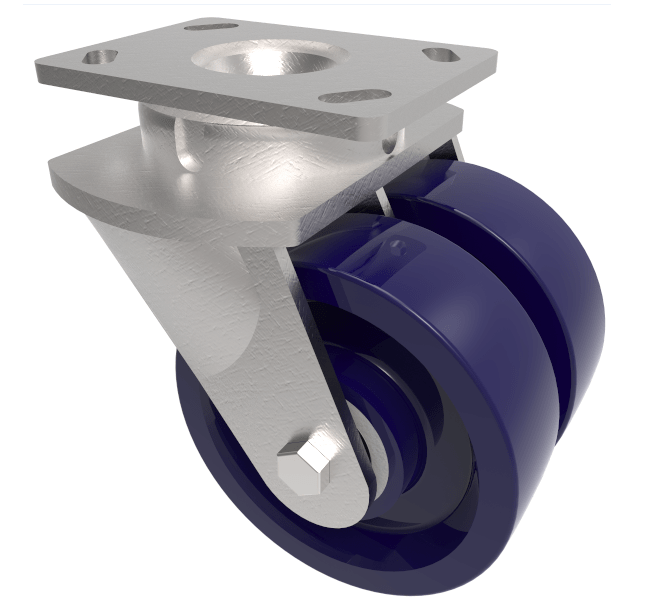

Twin wheeled fabricated swivel castor with a top plate fixing fitted with 2 x solid elastomer tyre aluminium wheels with ball journal bearings. Wheel diameter 2 x 125mm, tread width 2 x 50mm, overall height 177mm, top plate 150mm x 110mm, hole centres 105mm x 80mm or 121mm x 59mm. Load capacity 1000kg.
| Diameter (mm) | 125 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Swivel |
| Bearing type | Ball |
| Plate Size (mm) | 150 x 110 |
| Hole Centres (mm) | 105/121 x 80/59 |
| Height (mm) | 177 |
| Swivel Radius (mm) | 127 |
| To Suit Fixing Bolt (mm) | 12 |
| Wheel Material | Polyurethane on Aluminium |
