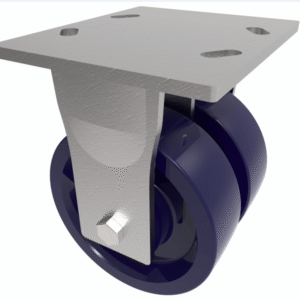

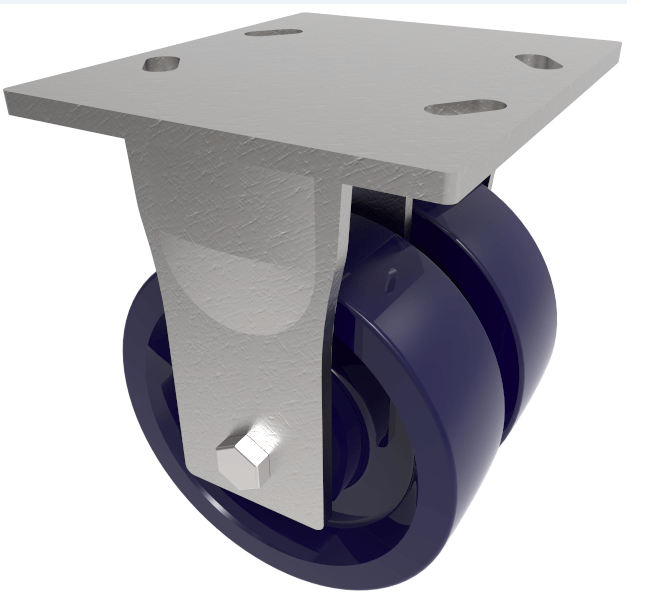

Fabricated fixed castor with a top plate fixing fitted with 2 x solid elastomer wheels with ball bearings. Wheel diameter 150mm, tread width 50mm x 2, overall height 200mm, top plate 150mm x 175mm, hole centres 105mm x 80mm or 121mm x 59mm. Load capacity 1350kg.
| Diameter (mm) | 150 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Fixed |
| Bearing type | Ball |
| Plate Size (mm) | 175 x 150 |
| Hole Centres (mm) | 105/121 x 80/59 |
| Height (mm) | 200 |
| To Suit Fixing Bolt (mm) | 12 |
| Wheel Material | Polyurethane on Aluminium |
| Colour / Shore Hardness | Blue Solid Elastomer on Aluminium Rim / 73 Shore D |
