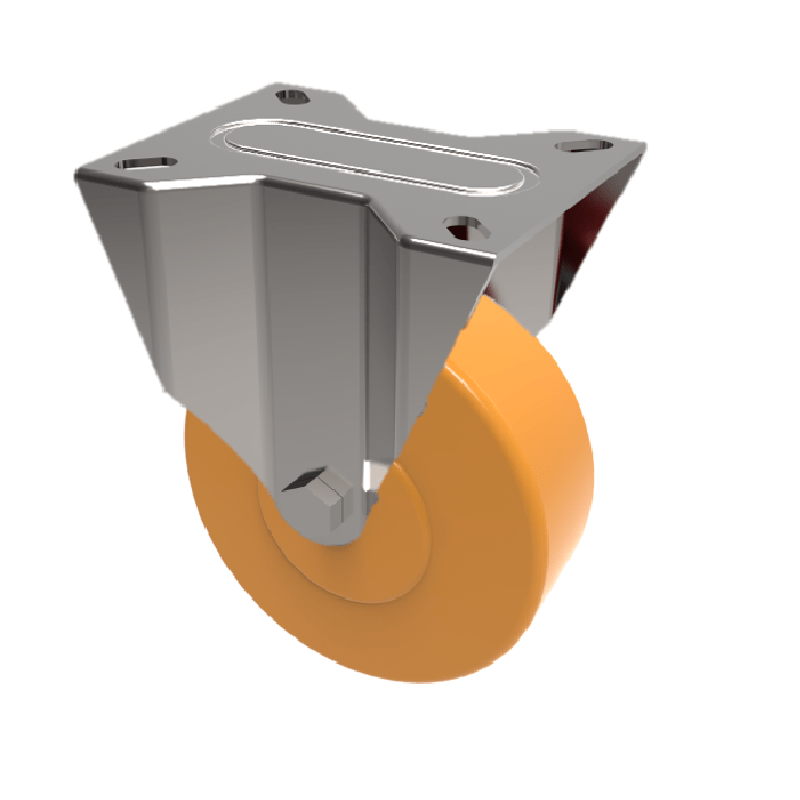

Grade 304 Pressed stainless steel fixed castor with a top plate fixing fitted with a high temperature orange epoxy resin wheel with enclosed ball bearings. Wheel diameter 100mm, tread width 40mm, overall height 130mm, top plate 100mm x 85mm, hole centres 80mm x 60mm or 75mm x 45mm. Load capacity 160kg. Temp range 250c
| Diameter (mm) | 100 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Fixed |
| Plate Size (mm) | 100 x 85 |
| Hole Centres (mm) | 80/75 x 60/45 |
| To Suit Fixing Bolt (mm) | 8 |
| Height (mm) | 128 |
| Bearing type | Ball |
| Wheel Material | Epoxy Resin |
| Colour / Shore Hardness | Orange High Temperature Epoxy Resin |
