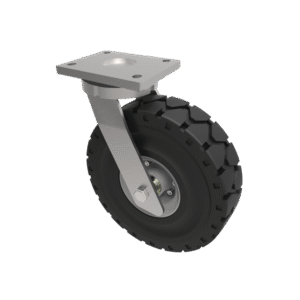

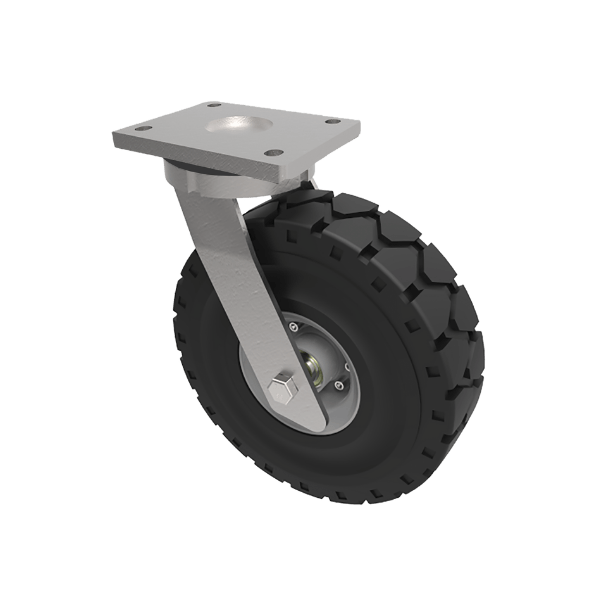

Fabricated zinc plated swivel castor with plate fixing fitted with a black elastic rubber tyred on a steel disc centred wheel with ball bearings. Wheel diameter 400mm, tread width 104mm, overall height mm, plate size 175mm x 140mm, hole centers 140mm x 105mm. Load capacity 950kg at 4kph, 520kg at 10kph and 430kg at 16kph
**Â FOR INTERNAL AND EXTERNAL TOWING USE **
| Diameter (mm) | 400 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Swivel |
| Bearing type | Ball |
| Height (mm) | 476 |
| Plate Size (mm) | 175 X 140 |
| Hole Centres (mm) | 140 X 105 |
| To Suit Fixing Bolt (mm) | 10 |
| Wheel Material | Rubber on Steel |
| Colour / Shore Hardness | Black Elastic Rubber on Steel Rim / 65 Shore A |
