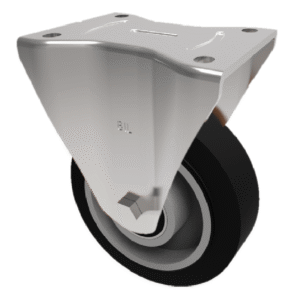

Pressed steel fixed castor with a top plate fixing fitted with a 65 shore A black high elastic rubber on cast iron wheel with ball bearings. Wheel diameter 200mm, tread width 50mm, overall height 245mm, top plate 135mm x 110mm, hole centres 105mm x 80mm; Load capacity 500kg at 4kph, 200kg at 10kph, 185kg at 16kph, 175kg at 20kph
**INTERNAL TOWING USE ONLY**
| Diameter (mm) | 200 |
|---|---|
| Castor Type | Fixed |
| Fixing Option | Plate |
| Height (mm) | 245 |
| Wheel Material | Rubber on Cast Iron |
| Colour / Shore Hardness | Black Elastic Rubber on Cast Iron Rim / 65 Shore A |
| Temperature Resistance | '-20 °C TO +60 °C |
| Bearing type | Ball |
| Load Capacity (kg) | 500 |
| Tread (mm) | 50 |
