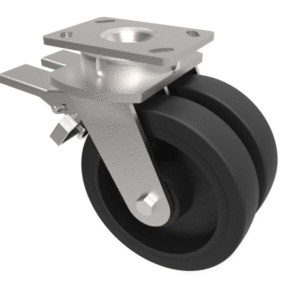

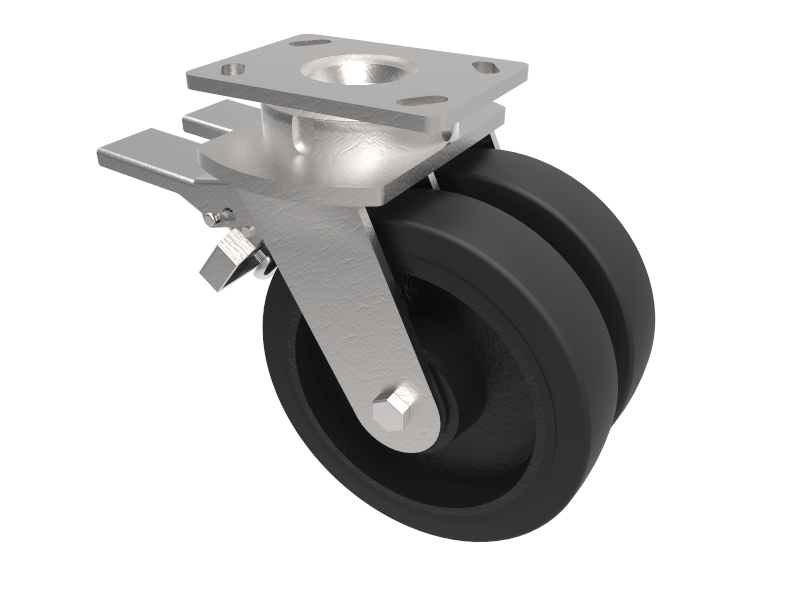

Twin wheeled swivel castor with a top plate fixing fitted with 2 black elastic rubber cast iron centred wheels with ball bearings. and a double wheel brake Wheel diameter 2 x 200mm, tread width 2 x 60mm, overall height 250mm, top plate 150mm x 110mm, hole centres 105mm x 80mm or 121mm x 59mm. Load capacity 1200kg.
| Diameter (mm) | 200 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Swivel with Wheel Brake |
| Bearing type | Ball |
| Plate Size (mm) | 150 x 110 |
| Hole Centres (mm) | 105/121 x 80/59 |
| Height (mm) | 250 |
| Swivel Radius (mm) | 170 |
| To Suit Fixing Bolt (mm) | 12 |
| Wheel Material | Rubber on Cast Iron |
