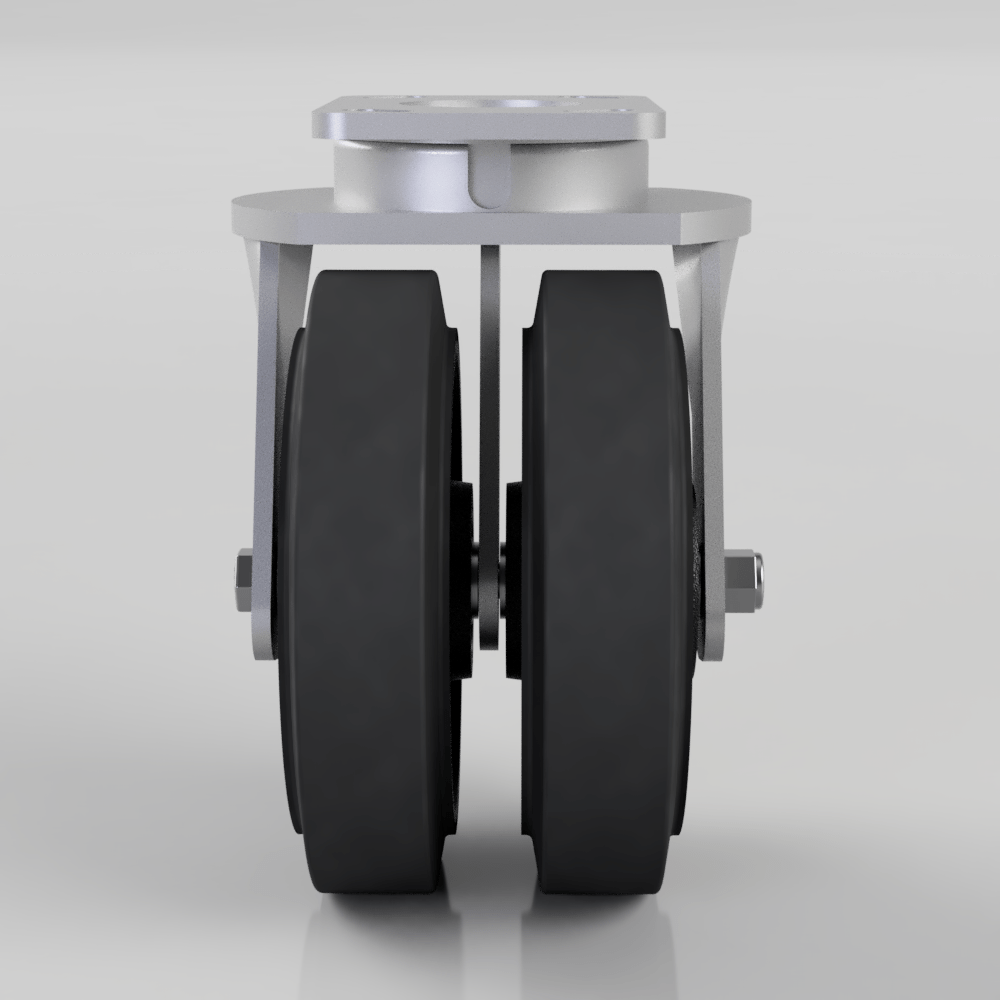

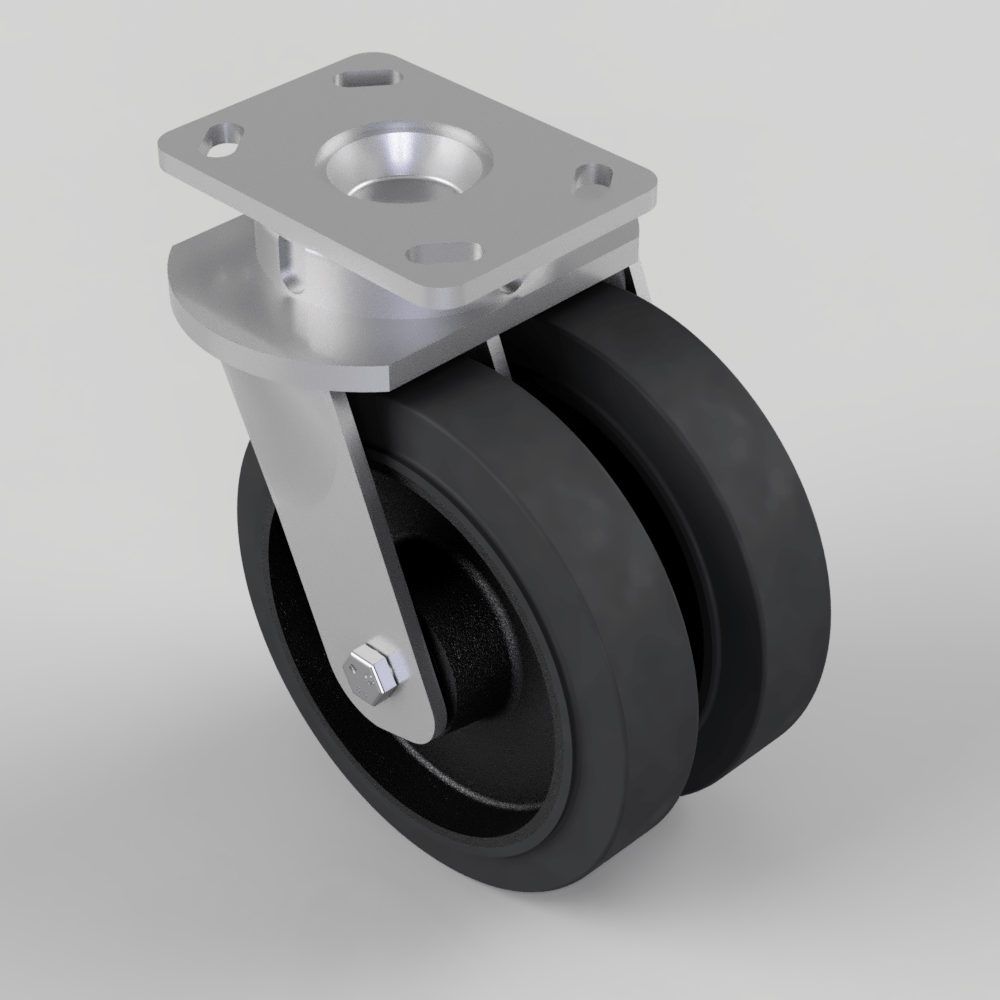

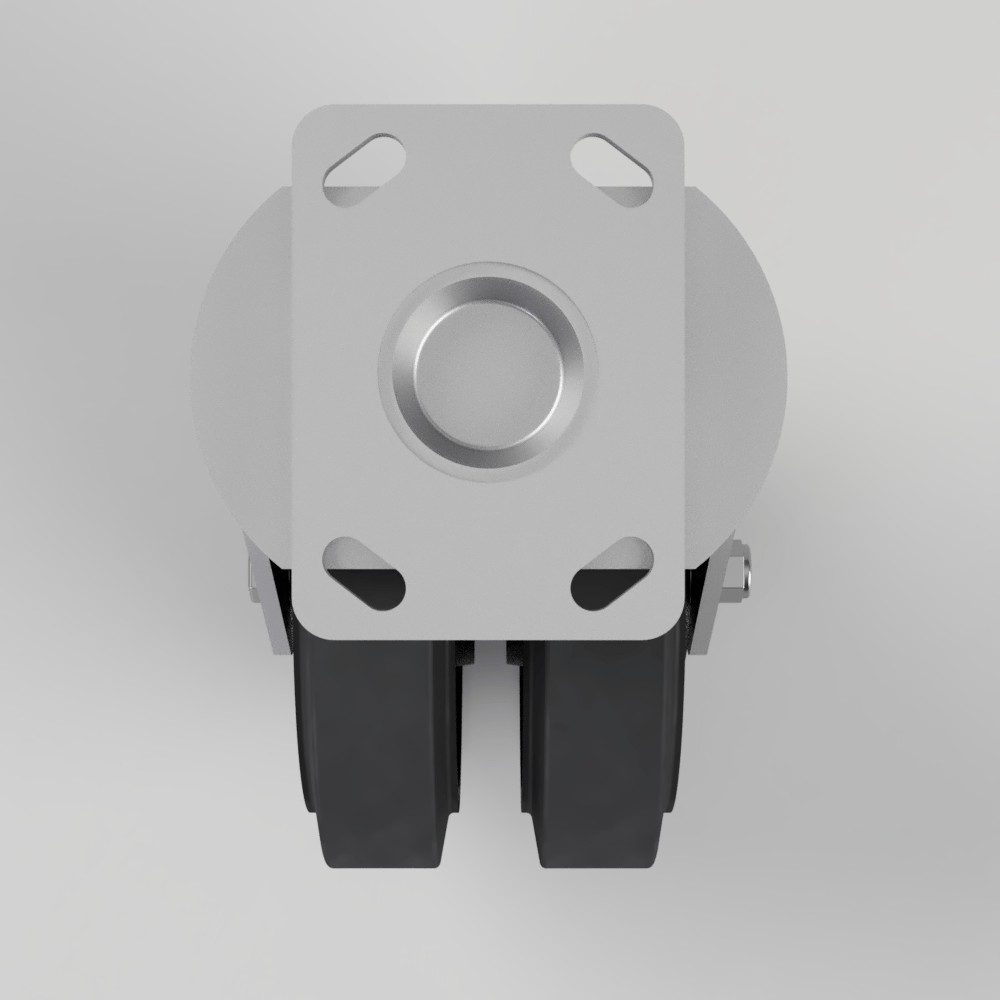

Twin wheeled swivel castor with a top plate fixing fitted with 2 65 shore A black elastic rubber cast iron centred wheels with ball bearings. Wheel diameter 2 x 200mm, tread width 2 x 50mm, overall height 250mm, top plate 150mm x 110mm, hole centres 105mm x 80mm or 121mm x 59mm. Load capacity 1000kg. – At 6 kph speed, the load of each wheel is advised to be 80% of the load at 4kph – At 10 kph speed, the load of each wheel is advised to be 55% of the load at 4 kph. – At 16 kph speed, the load of each wheel is advised to be 45% of the load at 4kph. – At 20 kph speed, the load of each wheel is advised to be 35% of the load at 4 kph. – No data for elastic rubber wheel over 20 kph.
