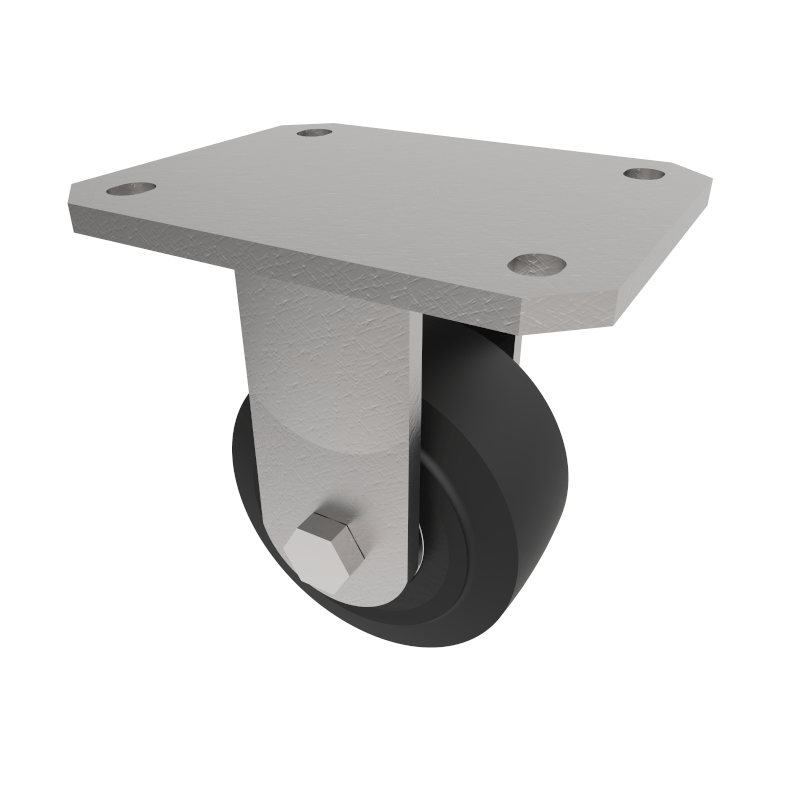

Fabricated white zinc ROHS plated fixed castor with a top palte fixing fitted with a black elastic rubber wheel on a cast iron centre with ball bearings. Wheel diameter 100mm, tread width 50mm, overall height 143mm, top plate 138mm x 110mm, hole centres 105mm x 80mm/75mm. Load capacity 210kg.
| Diameter (mm) | 100 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Fixed |
| Bearing type | Ball |
| Height (mm) | 143 |
| Plate Size (mm) | 138 x 110 |
| Hole Centres (mm) | 105 x 80/75 |
| To Suit Fixing Bolt (mm) | 10 |
| Wheel Material | Rubber on Cast Iron |
| Colour / Shore Hardness | Black Elastic Rubber on Cast Iron Rim / 75 Shore A |
