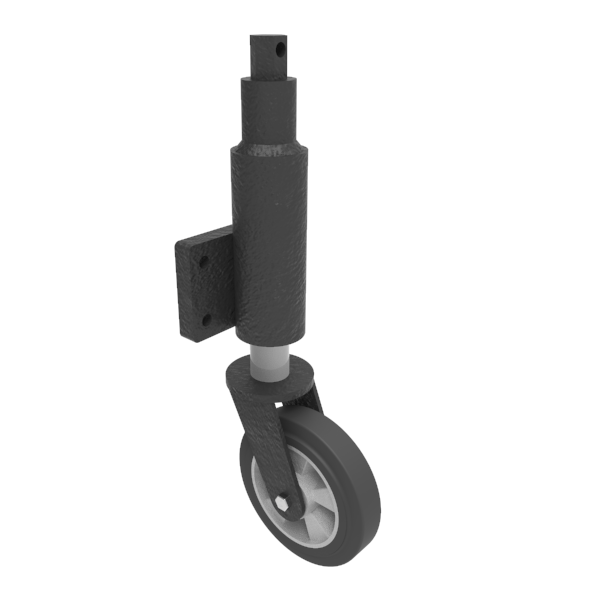

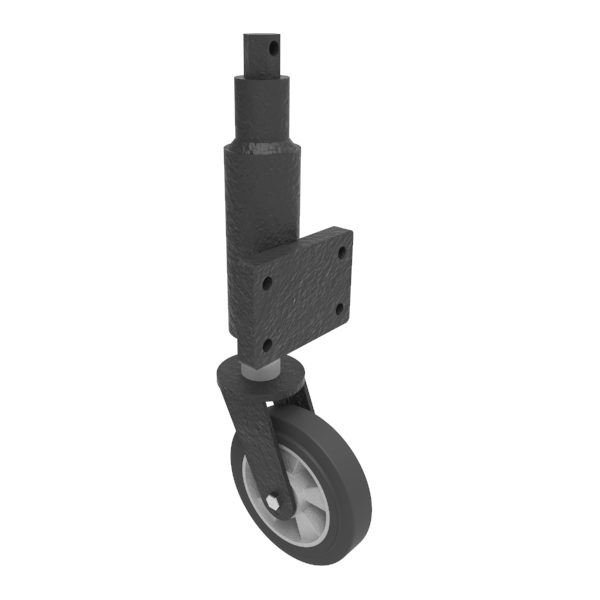

Fabricated 75mm lift swivel jacking bracket with fixing plate fitted with a black elastic rubber tyred aluminium centred wheel with ball bearings. Wheel diameter 200mm, tread width 50mm, overall height 621mm, plate size 152mm x 106mm, hole centres 114mm x 64mm Load capacity 500kg.
| Diameter (mm) | 200 |
|---|---|
| Height (mm) | 621 |
| Castor Type | Swivel |
| Swivel Radius (mm) | 160 |
| Fixing Option | Plate |
| Bearing type | Ball |
| To Suit Fixing Bolt (mm) | 12 |
| Colour / Shore Hardness | Black Elastic Rubber on Aluminium Rim / 65 Shore A |
| Temperature Resistance | '-30 °C TO +80 °C |
