Dockplates

Dockplates

Product ID: dockplates
Prices from:
£803.10 ex VAT £963.72 inc VAT

Length Mm

Width Mm

Capacity

Disclaimer: Please note that image shown may not match the size / combinations you have selected.
5 - 10 Days

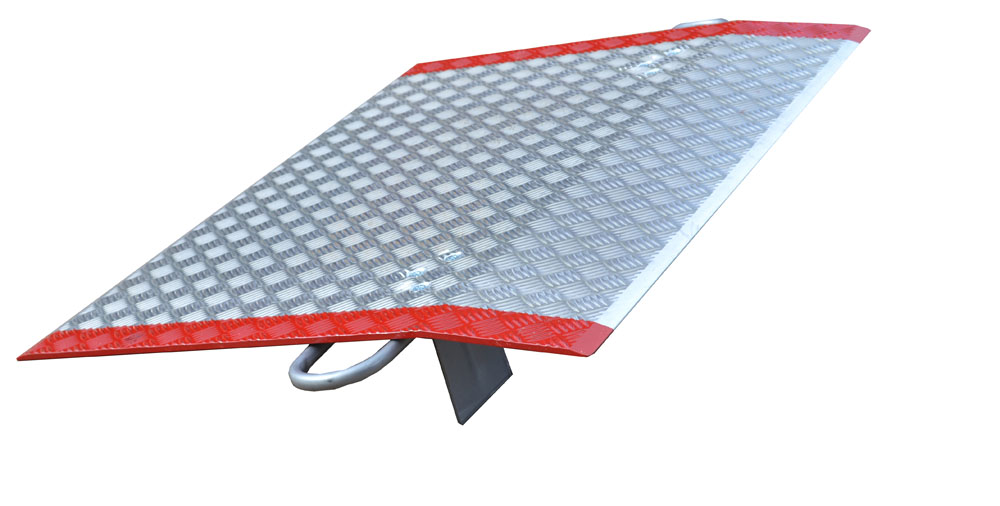

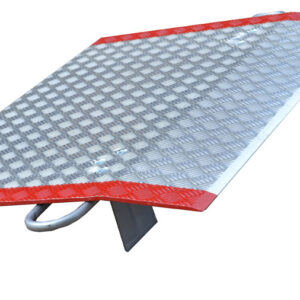

Dockplates bridge the gap between a raised loading area and a vehicle bed, giving a safe ramp for loading and unloading. Made from high tensile aluminium with a built-in anti-slip finish, they suit pallet trucks, sack trucks, roll cages and pedestrian access.

Key features:
– For loading and unloading vehicles from a raised loading area
– Suit pallet trucks, sack trucks, roll cages and pedestrian access
– High tensile aluminium with built-in anti-slip finish
– Loop type handles for movement
– One pair of locking legs to prevent movement in use
– Options: fork truck handles (FTH-1) and side curbs with castors (SCC-2)

Part of our loading bay range, dockplates are a simple, stand-alone way to load and unload safely. Use them alongside our Dock Bumpers to protect the loading bay.

Supplied by Western Industrial Products, backed by over 45 years of experience, thousands of stock lines, certified UK manufacturing and guarantees of up to 10 years on selected lines.

Contact our team or request a quote to order.



Q: What are dockplates used for?

A: Bridging the gap between a raised loading area and a vehicle bed for loading and unloading.

Q: What can move across them?

A: Pallet trucks, sack trucks, roll cages and pedestrians.

Q: What are they made from?

A: High tensile aluminium with a built-in anti-slip finish.

Q: What options are available?

A: Fork truck handles (FTH-1) and side curbs with castors (SCC-2) to aid movement.

Weight N/A
Length Mm

610, 915, 1220, 1525

Width Mm

1220, 915, 1525

Capacity

2040 kg, 1360 kg, 770 kg, 1810 kg, 2450 kg, 1270 kg, 810 kg, 1020 kg

Lead Time

5 – 10 Days

Is Workbench

1

Pim Product

0

Image Disclaimer

No

Length MmWidth MmCapacitySKUPrice (Exc VAT)Price (Inc VAT)
61012202040 kg4824-VAR35481£803.10£963.72
91512201360 kg4836-VAR35481£1,004.77£1,205.72
1220915770 kg3648-VAR35481£1,005.95£1,207.14
122012201810 kgH4848-VAR35481£1,480.04£1,776.05
91512202450 kgH4836-VAR35481£1,207.61£1,449.13
122015251270 kg6048-VAR35481£1,402.19£1,682.63
15251220810 kg4860-VAR35481£1,403.38£1,684.06
122012201020 kg4848-VAR35481£1,201.72£1,442.06
