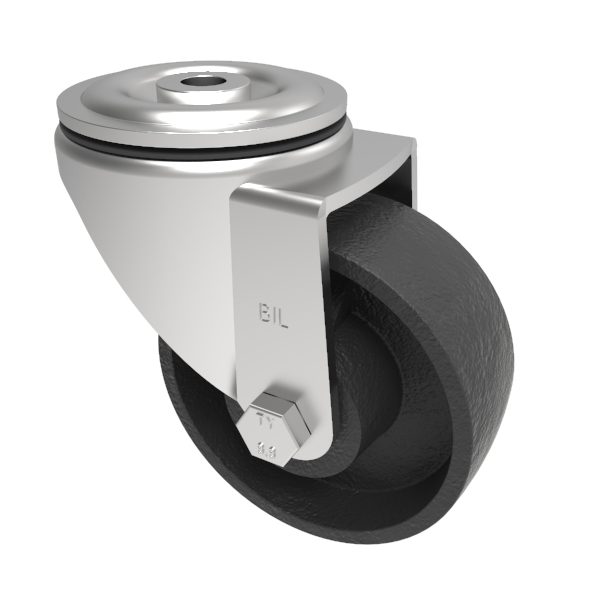

Pressed steel swivel (case hardened ball race) castor with a top plate fixing fitted with a plain bore cast iron wheel. Wheel diameter 75mm, tread width 32mm, overall height 108mm, top plate 105mm x 86mm, hole centres 80mm x 60mm. Load capacity 190kg.
| Diameter (mm) | 75 |
|---|---|
| Castor Type | Swivel |
| Fixing Option | Plate |
| Height (mm) | 108 |
| Wheel Material | Cast Iron |
| Colour / Shore Hardness | Black Painted Cast Iron |
| Temperature Resistance | '-30 °C TO +80 °C |
| Bearing type | Plain |
| Load Capacity (kg) | 190 |
| Tread (mm) | 35 |
