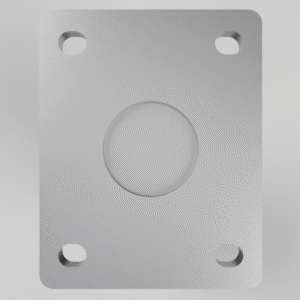

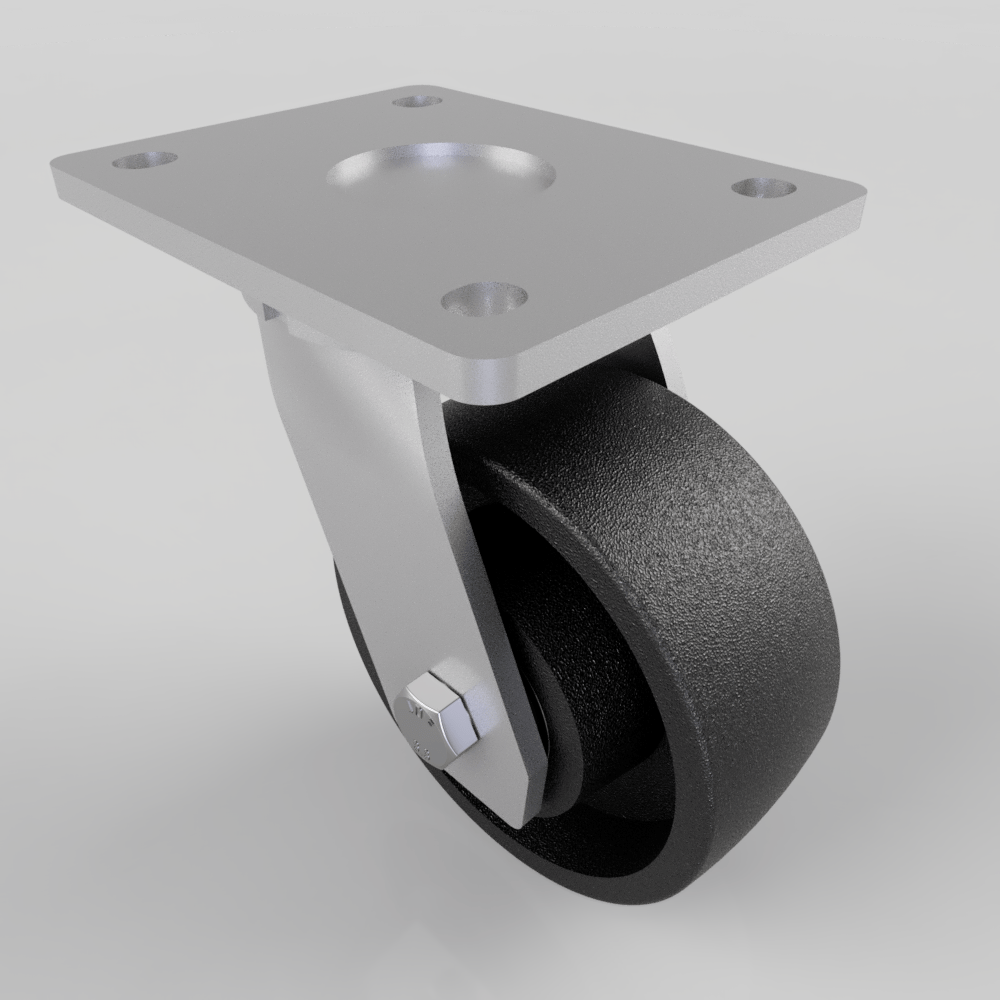

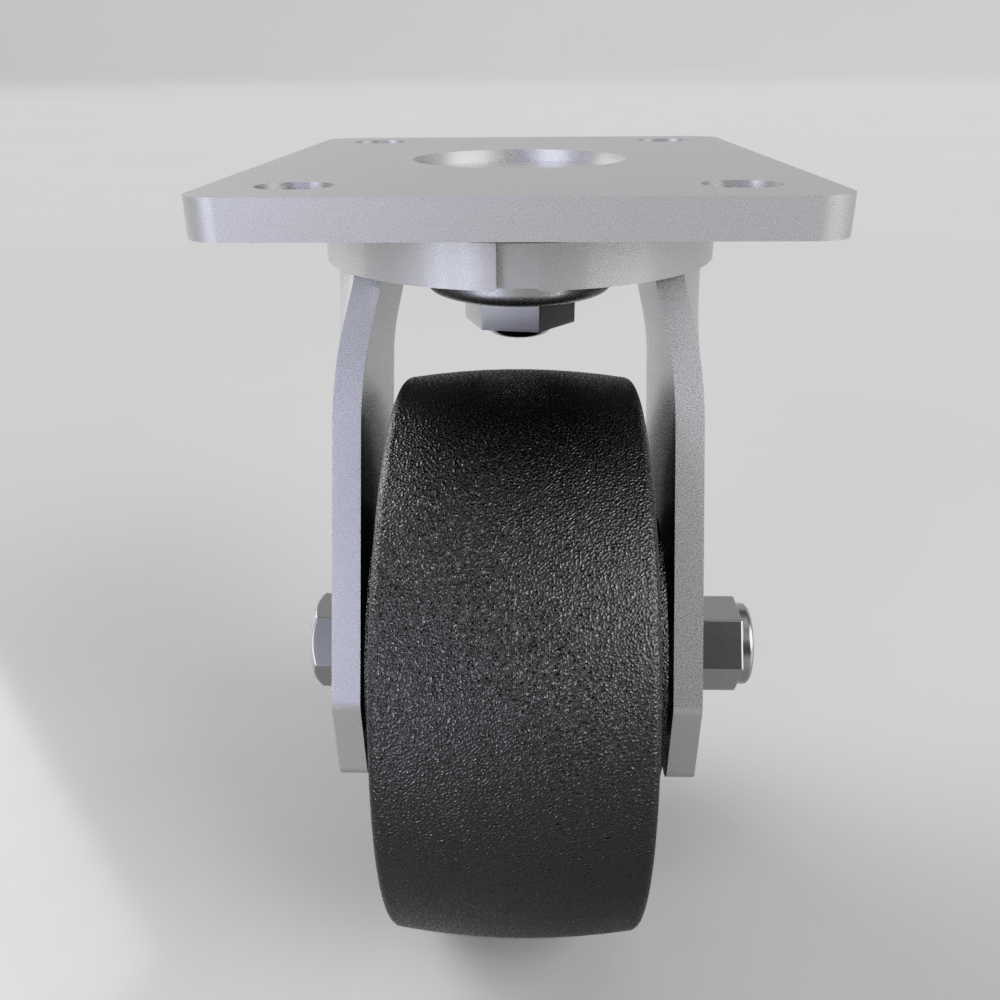

Fabricated white zinc ROHS plated swivel castor with a top plate fixing fitted with a black painted cast iron wheel with ball bearing. Wheel diameter 125mm, tread width 50mm, overall height 165mm, top plate 138mm x 110mm, hole centres 105mm x 80mm/75mm. Load capacity 550kg.
| Diameter (mm) | 125 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Swivel |
| Bearing type | Ball |
| Height (mm) | 165 |
| Plate Size (mm) | 138 x 110 |
| Hole Centres (mm) | 105 x 80/75 |
| To Suit Fixing Bolt (mm) | 10 |
| Wheel Material | Cast Iron |
| Colour / Shore Hardness | Black Painted Cast Iron |
