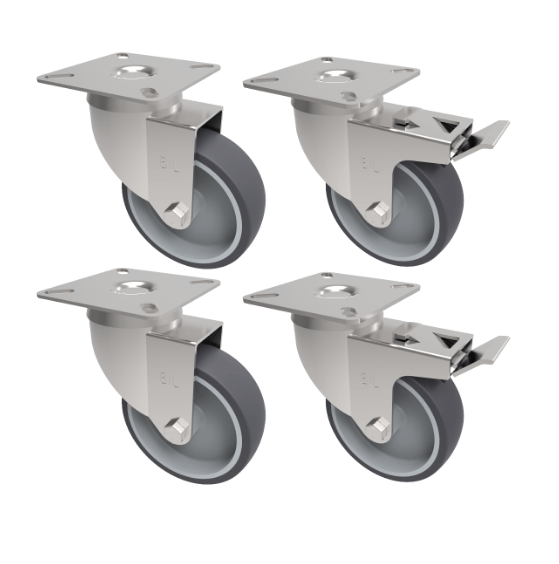

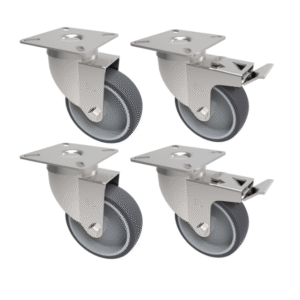

4 Four pack pressed steel 2 x swivel and 2 x swivel with total lock brake castor plate fixing fitted with a grey thermoplastic rubber tyre on a grey polypropylene centred wheel with a Plain Bore. Wheel diameter 75mm, tread width 24mm, overall height 100mm. Top Plate 50mm x 50mm, hole centres 39mm x 39mm or 31mm x 31mm. Load capacity 50kg per castor / 150kg Total set load.
| Diameter (mm) | 75 |
|---|---|
| Fixing Option | Plate |
| Castor Type | Fixed, Swivel, Swivel with Total Lock Brake |
| Height (mm) | 101 |
| Bearing type | Plain |
| Fork Thickness (mm) | 1.5 |
| Temperature Resistance | '-10 °C TO +50 °C |
| To Suit Fixing Bolt (mm) | 6 |
| Plate Size (mm) | 65 x 65 |
| Hole Centres (mm) | 48/43 x 48/43 |
